عداد تدفق ميكانيكي

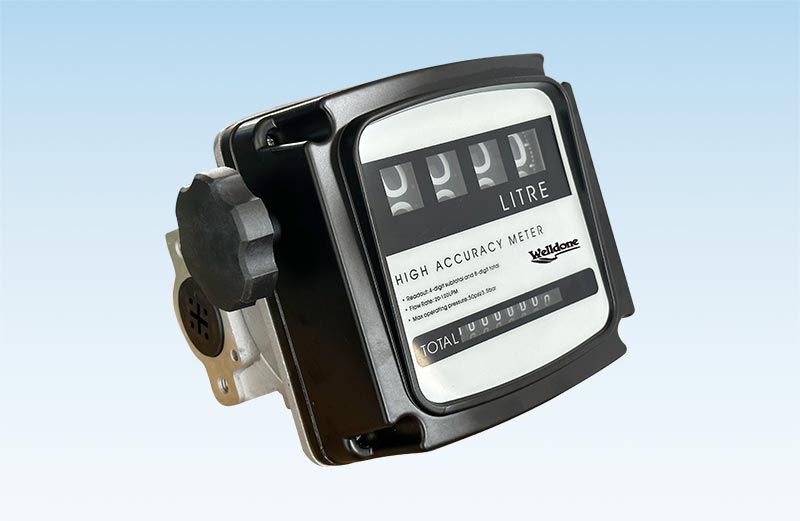

Flow meter
Nutating-disk meters that measure the exact quantity of the dispensed fuel or lubricant. They are designed for non-commercial use only. These flow-meters are reliable, inexpensive, easy to install and simple to calibrate on the workplace.The Pulser model is fitted with a pulse emitter for connection to a fuel management system.
Thanks to reduced flow resistance, they can also function by gravity.

Performance Specifications
• Flow-rate (range): 20-120l/min ( 5,3-32 gal/min )
• Repeatability: 0,2%
• Max. operating pressure: 10 bar ( 142 psi )
• Bursting pressure: 30 bar ( 426 psi )
• Resolution: 0.1 litre.
• Pulser card type: “Open collector”frequency: 10 pulses/litre, power supply: 6-24 V DC, max 10 mA.
