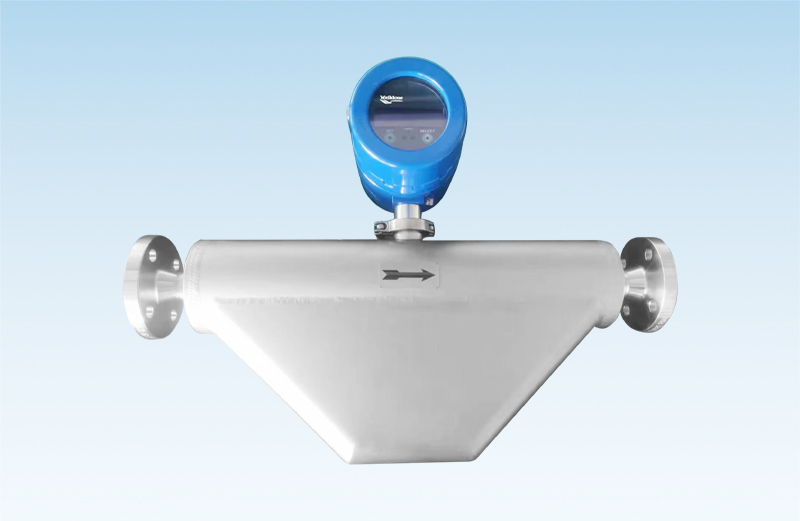

| Modelo | HYCG06 | HYCG10 | HYCG15 | HYCG20 | HYCG25 | HYCG32 | HYCG50 | HYCG80 | HYCG100 |
| Grado de precisión de masa | 0.2 0.3 0.5 seleccionar | ||||||||
| Tasa máxima de flujo | 1200 kg/h | 1800 kg/h | 3000 kg/h | 4200 kg/h | 12000 kg/h | 15000 kg/h | 60000 kg/h | 180000 kg/h | 240000 kg/h |
| Precisión de temperatura | ±1 °C | ||||||||
| Repetibilidad | ±0.05% | ||||||||
| MPa | 4 MPa | 25~30 MPa | 4 MPa | 4 MPa | 4 MPa | 4 MPa | |||
| Diámetro nominal | 6 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 50 mm | 80 mm | 100 mm |
| Conexión de extremo | Brida (personalizable) M32×1.5 M32×1.5 Tuerca (personalizada) | ||||||||
| Temperatura del fluido | -200~200 °C | ||||||||
| Piezas en contacto con el fluido | Acero inoxidable 316L | ||||||||
| HR | =95 %, no condensado | ||||||||
| Pérdida de presión | =0.2 MPa | ||||||||
| Marca de explosión | II 2G Ex db [ib] IIC T6... T1 Gb (Transmisor) Ex ib IIC T6...T1 Gb (Sensor) | ||||||||
| Voltaje de operación | AC 85~265 V, DC 24 V | ||||||||
| Señal de salida | RS485; Modbus RTU; señal de pulso de flujo de 0~10 kHz | ||||||||
