HYYBN-15
Diaphragm pumps are used AdblueR Series pump is positive displacement vane pump,applied to transfer gasoline,kerosene, diesel and other light oil
Read More
HYTPE Series Rotary Vane Pump
Electric pumpModelHYTPEImport and export caliber25mmAllowed Priming5MAccuracy±1%Voltage380vAccumulated counting range999LFlow55-65l/minAllowed Lift25MMotor power0.8KWWeight75KGHandshake PumpModelHYTPHImport and export caliber25mmAccuracy±
- Product category
- Fluid
- Application
Electric pump
| Model | HYTPE |
| Import and export caliber | 25mm |
| Allowed Priming | 5M |
| Accuracy | ±1% |
| Voltage | 380v |
| Accumulated counting range | 999L |
| Flow | 55-65l/min |
| Allowed Lift | 25M |
| Motor power | 0.8KW |
| Weight | 75KG |

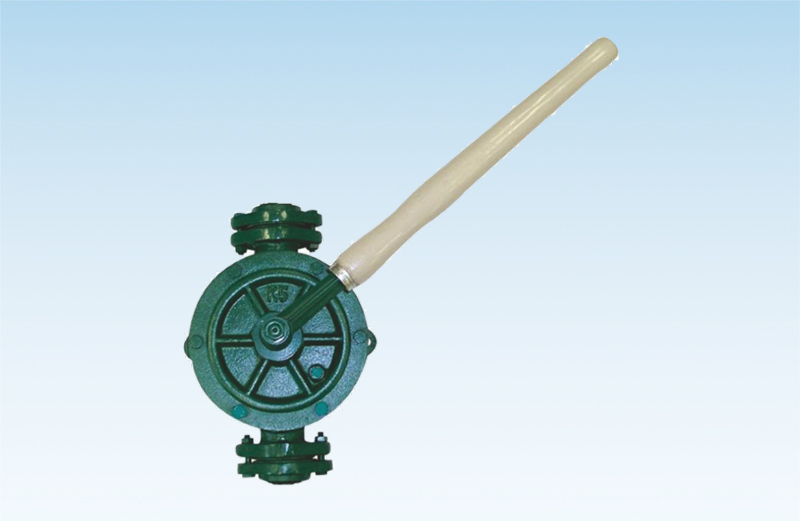

Handshake Pump
| Model | HYTPH |
| Import and export caliber | 25mm |
| Accuracy | ±1% |
| Piston diameter | 90mm |
| Repeated times | 35-45times/min |
| Allowed Lift | 20m |
| Weight | 27kg |
| Max.pressure | 0.2Mpa |
| Allowed Priming | 4-5m |
| Flow | 35-55L/min |
Features
