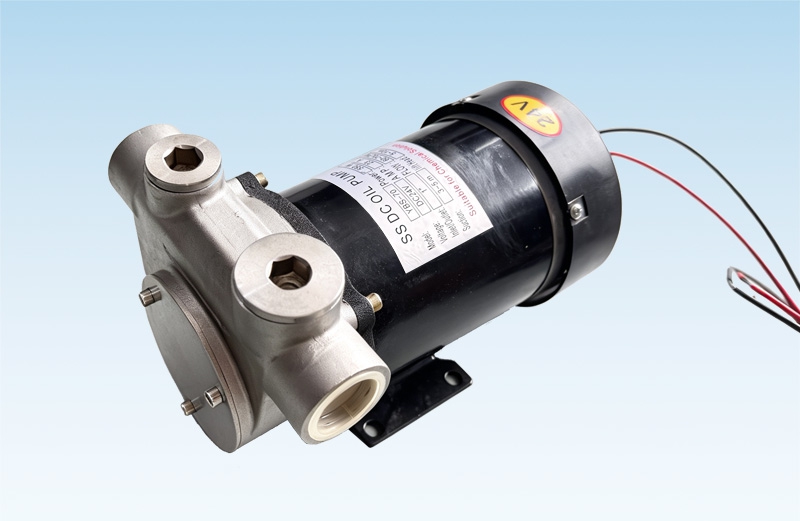

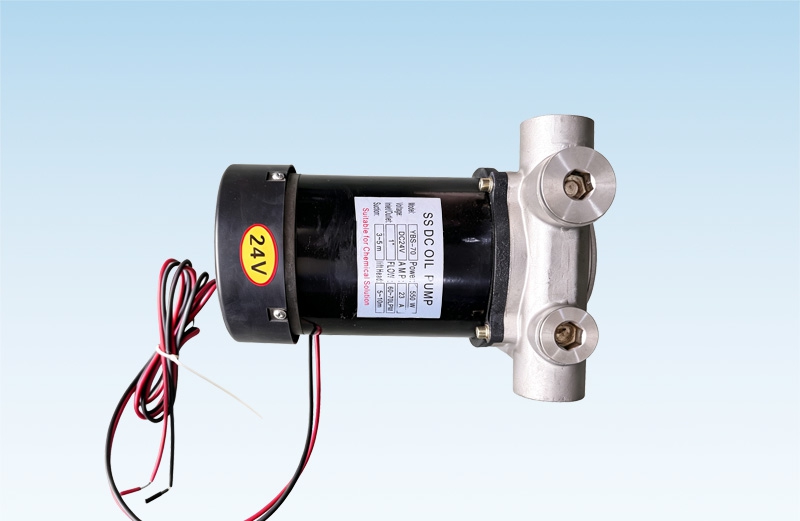

HYYBS-70DC
Positive displacement vane pumps feature smooth low-pulsation flow, low noise, compact lightweight structure, high volumetric efficiency, good self-priming capacity and moderate cost;
- Product category
- Fluid
- Application
Flexibility impeller Series pump is positive displacement vane pump,applied to transfer gasoine,kerosene,diesel and other light oil,used to load&unload in stockterminal,also on oil tank trucks and mobile fuelunit.
| 型号 Model | HYYBS-70DC12V/24V |
| 口径进出口 Import and export of caliber | 1" |
| 吸程 Suction lift | 3-5m |
| 扬程 Head | 5-10m |
| 电机功率 Motor power | 550W |
| 转速 Rotationalspeed | 3000r/min |
| 电压 Voltage | DC12/24V |
| 最大工作压力 Maximum working pressure | 0.18MPa |
| 流量 Traffic | 60-70L/min |
| 包装尺寸Package size | 45.5x31x36cm |
| 毛重 Gross weight | 16.5KG/2台装 |
