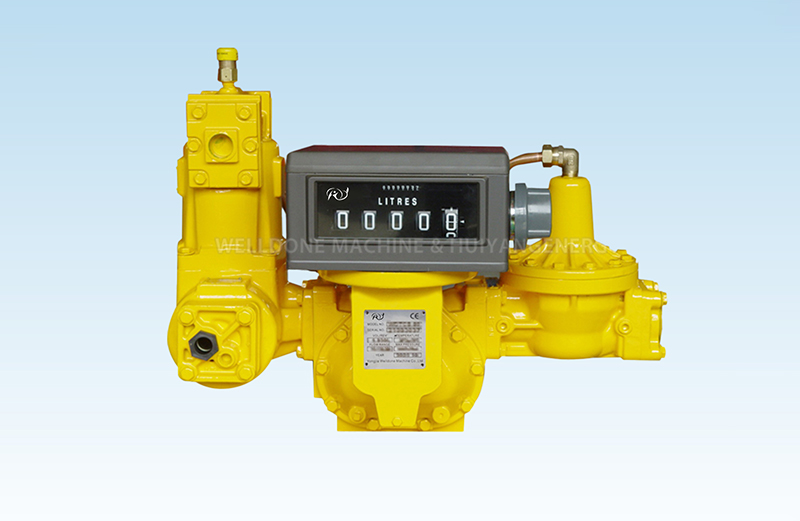

HYTCS series Positive Displacement Flow Meter
Advantage：Excellent step less adjusting mechanism allows a micro adjustment of the meter.High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow.Low maintenance,no metal-to-metal contact in measuring chamber,long lift service.Low pressure loss,a true gravity flow meter.Accuracy regardless of pressure fluctuations, temperature variation,viscosity.Choice of aluminum,cast iron and stainless steel materials of construction
| Model | HYTCS-40 | HYTCS-50 | HYTCS-80 | HYTCS-100 | HYTCS-150 |
| Size | 40mm/1.5" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/6" and100mm/4"for option |
| Flow range | 25-250L/min | 55-550L/min | 115-1150L/min | 170-1700L/min | 300-3000L/min |
| Volume per revolution | 0.309L | 0.681L | 1.839L | 5.102L | 14.87L |
| Max.pressure | 10Bar | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard measurement | Liter/US Gallon/IMP Gallon | ||||
| Dimension | 51×46×49cm | 51×46×49cm | 61×54×57cm | 76×64×72cm | 80×65×90cm |
| Net weight | 23kg | 26kg | 40kg | 70kg | 130kg |
| Gross weight | 25kg | 28kg | 47kg | 93kg | 180kg |
| Package | 1pc/Strong Yellow Paper Carton | 1pc/Wooden Case | |||
| Material | AL-Alloy、316L Stainless steel316L （can choose） | ||||
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
ModelHYCZLPGMass accuracy grade0.2 0.3 0.5 chooseRemp.accuracy±1°CRepeatability±0.05%Mpa4MPaNomianal diameter50mmEnd connectionFlange（customizable）M32×1.5M32×1.5Nut（customized）Fluid temperature-200~200°CWetted partsStainless steel 316LRH=
