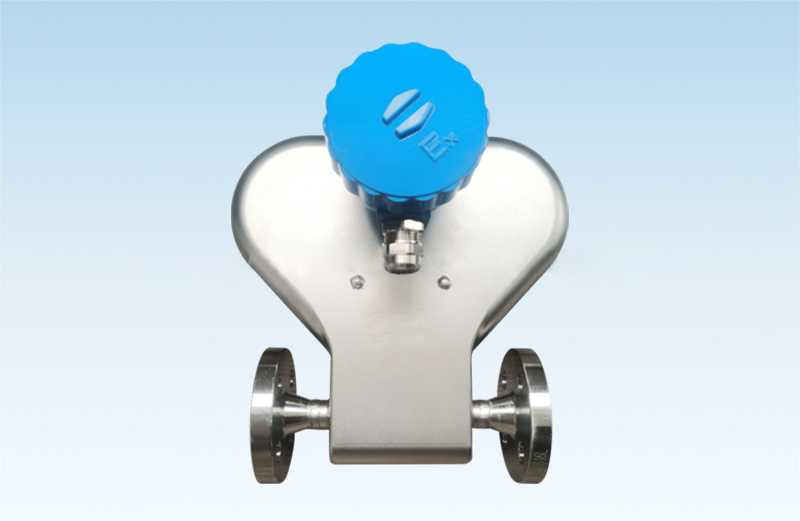

| Model | HYCG-03 |
| Mass accuracy grade | 0.15,0.2,0.3,0.5 |
| Repeatability | 0.075%,0.1%,0.15%,0.25% |
| Remp.accuracy | ±1°C（Repetitiveness±0.5°C） |
| Temp.accuracy | ±0.001g/cm³ (Only liquid) |
| Density accuracy | 360kg/h |
| Maximum mass flow | 4MPa |
| Standard withstand voltage | 3mm |
| Nominal diameter | DIN2635 PN40 DN15 法兰 |
| Connection specification | 01（-70°C~+160°C）；02（-200°C~+60°C）；03（-40°C~+300°C） |
| Medium temperature | AISI316L |
| Wetted parts | 0.01kg/h |
| Loss of pressure | ≤0.08MPa |
| Level of protection | IP65/IP67 |
| Ex-mark | II 2G Ex db [ib] IIC T6... T1 Gb(Transmitter) Ex ib IIC T6...T1 Gb(Sensor) |
| Operating voltage | （85~265）VAC/（12~24）VDC |
| The Output Signal | RS485；Modbus RTU；0~10KHz Sight flow pulse signal |
| Communication Signal | Modbus RTU RS-485；HART |
