Application
Blending,batching,dispensing,inventory control, and transfering of oils,solvents,chemicals,paints,fertilizer,etc.
Advantage

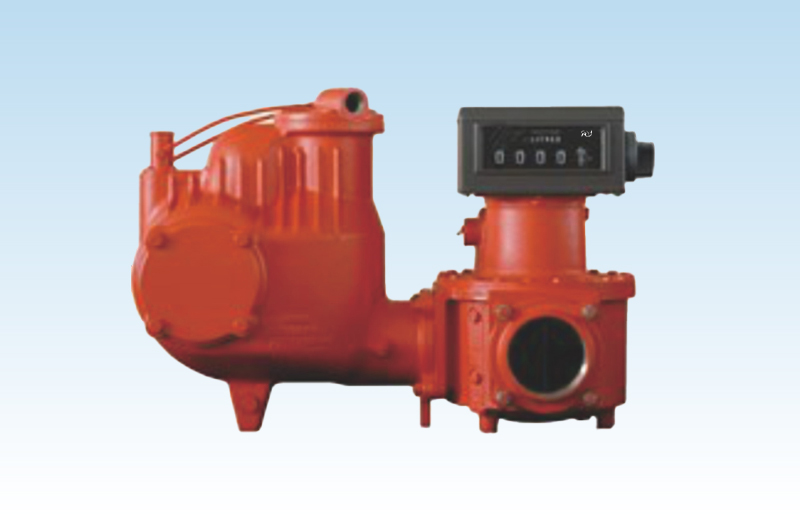

HYFMC Series rotary vane meters are single case,angle-type,rotary vane,positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact,versatile design can be readily fit into nearly all installations.
Low pressure loss ,a true gravity flow meter
Long service life,low friction ball bearings,fixed cam-type shaft construction give sustained accuracy and long time operation
| Model | HYFMC-50 | HYFMC-80 | HYFMC-100 |
| Size | 50mm/2" | 80mm/3" | 100mm/4" |
| Flow rate range | 38-380L/min | 75-750L/min | 150-1500L/min |
| Max.Working Pressure | 10Bar/150PSI | ||
| Accuracy | ±0.2% | ||
| Repeatability | ≤0.07% | ||
| Dimension | 59×34×52cm | 70×40×58cm | 83×46×65cm |
| Net weight | 42kg | 56kg | 80kg |
| Gross weight | 54kg | 70kg | 96kg |
| Package | 1pc/wooden case | ||
