HYLLJ-30L/G Flow Meter
Aluminium metering chamber,1” thread connection

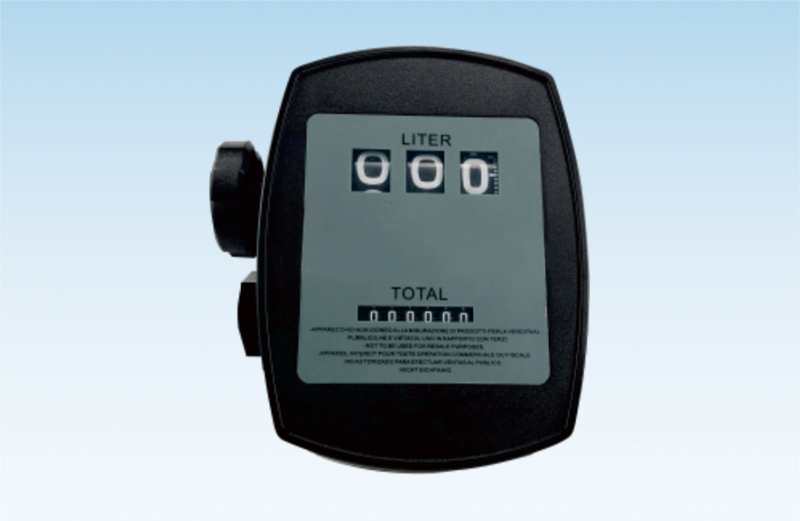

Mechanical readout device with rotating wheels.3 digital subtotals can be set to zero,6 digital totalizer can not be resetted.
| Model | HYLLJ-30(A)L/G |
| Measurement | Litre/US Gallon |
| Max. pressure | 3bar |
| Flow rate | 20-120L/min |
| Inlet&outlet | BSPF/NP 1” |
| Accuracy | ±1% |
| Dimension | 45x24x43cm |
| Net weight | 10kg |
| Gross weight | 11kg |
| Package | 6PCS/CTN |
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYTCS series Positive Displacement Flow MeterAdvantage：Excellent step less adjusting mechanism allows a micro adjustment of the meter.High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow.Low mainte
