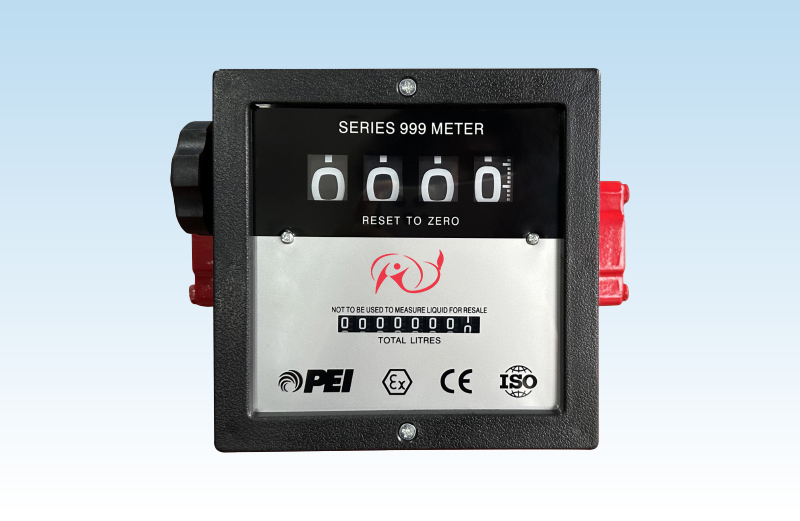

HYLLJ series Mechanical Flowmeter
HYLLJ series Flow Meter is designed for noncommercial useonly. It is used for diesel fuel, kerosene. These flow meters are reliable,inexpensive, easy to install and simple to calibrate on the workplace. It hasthe advantage of large, easy to read numbers, quick reset knob, flexibleflowports can be positioned vertically or horizontally. The easy reset registerindicates product use up to 999.9. The master totalizer registers
Aluminum metering chamber, thread connection. Mechanical readout device withrotating wheels. Subtotals can be set to zero, total readouts can not.
Technical performance | |
Model | HYLLJ-40L |
Max pressure | 3.5Bar |
Flow rate | 20-12L/min |
Inlet&Outlet | Inlet3/4’’ Outlet1’’ |
precision | ±1% |
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYTCS series Positive Displacement Flow MeterAdvantage：Excellent step less adjusting mechanism allows a micro adjustment of the meter.High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow.Low mainte
