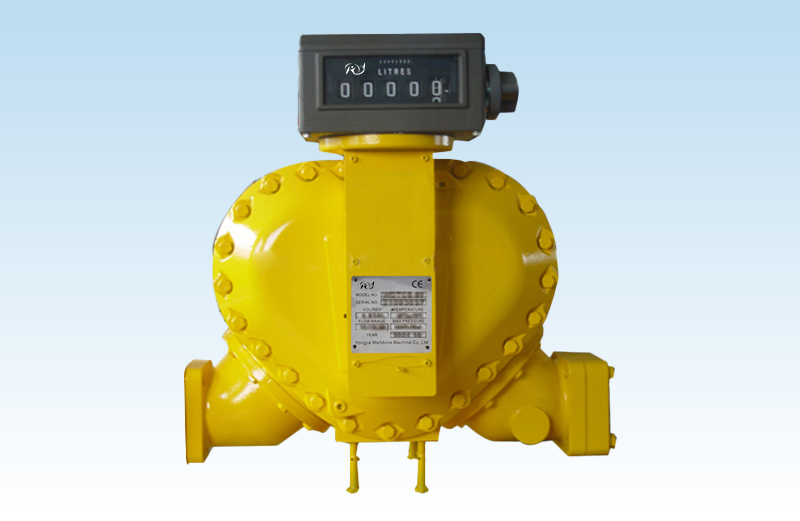

HYTCS series Positive Displacement Flow Meter
Advantage：Excellent step less adjusting mechanism allows a micro adjustment of the meter.High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow.Low maintenance,no metal-to-metal contact in measuring chamber,long lift service.Low pressure loss,a true gravity flow meter.Accuracy regardless of pressure fluctuations, temperature variation,viscosity.Choice of aluminum,cast iron and stainless steel materials of construction
| Model | HYTCS-40 | HYTCS-50 | HYTCS-80 | HYTCS-100 | HYTCS-150 |
| Size | 40mm/1.5" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/6" and100mm/4"for option |
| Flow range | 25-250L/min | 55-550L/min | 115-1150L/min | 170-1700L/min | 300-3000L/min |
| Volume per revolution | 0.309L | 0.681L | 1.839L | 5.102L | 14.87L |
| Max.pressure | 10Bar | ||||
| Accuracy | ±0.2% | ||||
| Repeatability | ≤0.07% | ||||
| Standard measurement | Liter/US Gallon/IMP Gallon | ||||
| Dimension | 51×46×49cm | 51×46×49cm | 61×54×57cm | 76×64×72cm | 80×65×90cm |
| Net weight | 23kg | 26kg | 40kg | 70kg | 130kg |
| Gross weight | 25kg | 28kg | 47kg | 93kg | 180kg |
| Package | 1pc/Strong Yellow Paper Carton | 1pc/Wooden Case | |||
| Material | AL-Alloy、316L Stainless steel316L （can choose） | ||||
