HYTY Oval gear meter for controlling and measuring low, medium, and high viscosity, such as fuel, lubrication oil, with advantage of high precision and low pressure loss, compact light weight design and easy installation.

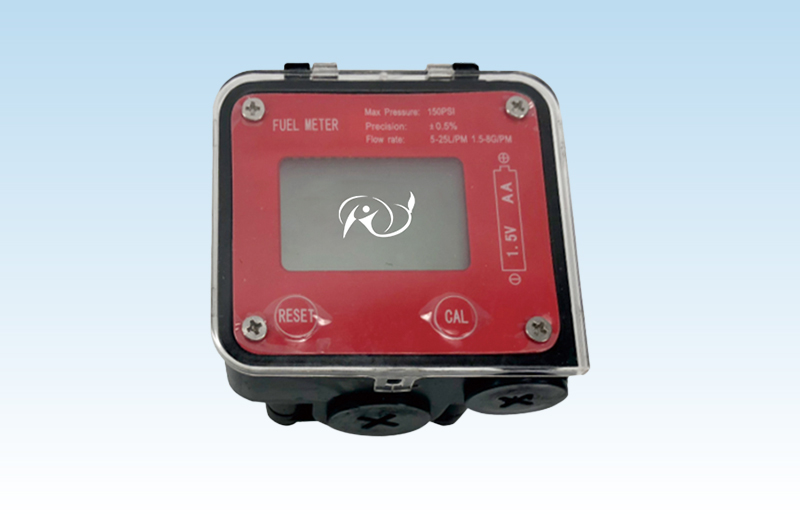

HYJYM Oval gear meter with LCD display, 5-digital sub-total, with floating point from 0.001 to 999.99 8-digital non-resettable totalizer.

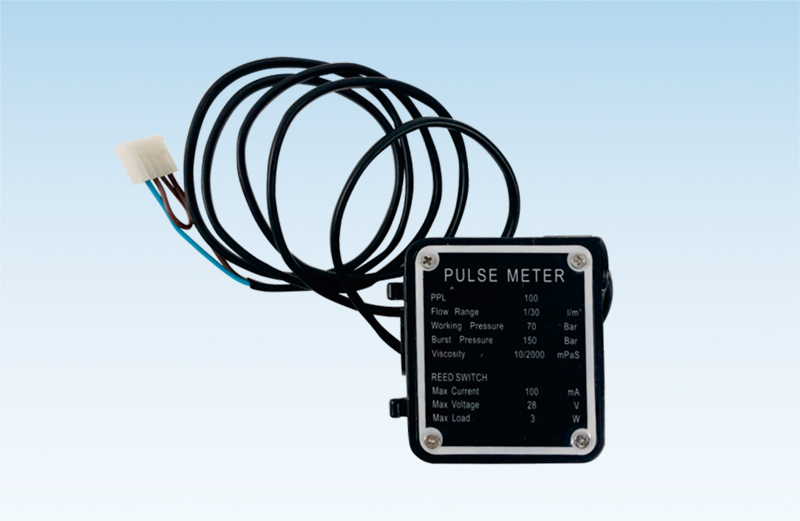

HYJYM-P Oval gear meter with pulse output, Reed Switch built in, signal channel output.
Technical Data:
Inlet and Outlet: BSP 1/2";
Accuracy: ±0.5%
Repeatibility: 0.2%
Max. Working Pressure: 70Bar
Flow Rate: 1-30L/min
Discharge Rate Revolution:25ml/R
Battery Power: 2x 1.5V
Output of Pulser:
2 pulses per revolution
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYWL is a whole series industrial flowmeter which can supply all kinds of real material. Aluminum is the best one fit for petroleum production. In order to satisfy the user\'s demand. The designs of sensor are flexible. Normally the thread i
HYTCS series Positive Displacement Flow MeterAdvantage：Excellent step less adjusting mechanism allows a micro adjustment of the meter.High accuracy and repeatability over the widest range of flow;superior accuracy at constant flow.Low mainte
